WELDLESS RINGS, PEAR LINKS, WIRE ROPE THIMBLES

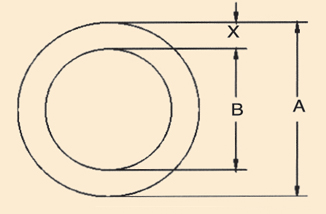

Weldless Rings - CWR152

Ultimate load is 6 times the Working Load Limit Self Coloured or Hot Dip galvanized Forged carbon steel - Quenched and Tempered

Meet the performance requirements of Federal Specification RFI-C-271 D Type VI.
Size(X) (mm)	CWR Item No.	Working Load Limit Single Pull (t)*	Weight Each (kg)	Dimensions (mm)
				B	A
22.2 x 102	15201	3.27	1.23	102	146
22.2 x 140	15202	2.54	1.57	140	184
25.4 x 102	15203	4.90	1.57	102	152
28.6 x 152	15204	4.72	2.99	152	210
31.8 x 127	15205	7.71	3.09	127	191
34.9 x 152	15206	8.62	4.59	152	222

Weldless Pear Links - BPL154

Ultimate load is 6 times the Working Load Limit Based On Single Leg Sling (In-Line Load), or resultant Loan on multiple legs with an included angle less than or equal to 120 degrees

Meet the performance requirements of Federal Specification RR-C-271 D Type VI.
Size (X) (mm)	Size (In)	CPL Item No.	Working Load Limit Single Pull (t)*	Weight Each (kg)	Dimensions (mm)
					B	A	S	H	P
9-10	3/8	15409-10	0.82	0.10	28.7	19.1	76.0	57.0	9.65
11-13	1/2	15411-13	1.32	0.25	38.1	25.4	102	76.0	12.7
16	5/8	15400-16	1.91	0.48	47.5	31.8	127	95.5	16.0
18-20	3/4	15418-20	2.72	0.85	57.0	38.1	152	114	19.1
22	7/8	15400-22	3.76	1.25	67.0	44.5	178	133	22.4
24-26	1	15424-26	4.90	1.97	76.0	51.0	203	152	25.4
32	1.1/4	15400-32	7.60	3.45	102	63.5	260	191	31.8
35	1.3/8	15400-35	9.30	5.13	105	70.0	279	210	35.1

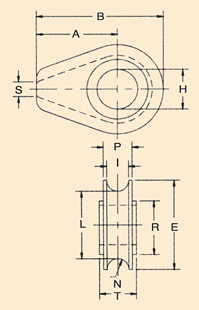

Solid Wire Rope Thimbles - BST155

Fits pin for open wire rope socket, boom pendant clevis and wedge socket. Cast Ductile Iron

Meet the performance requirements of Federal Specification RR-C-271 D Type VI.
Rope Dia (mm)	BST Item No.	Working Each (kg)	Dimensions (mm)
			B	A	S	H	P	I	N	T	E	R	L
13	15500-13	0.28	71.5	44.5	6.35	26.9	19.1	14.2	7.10	22.4	54.0	41.4	39.6
16	15500-16	1.00	119	76.0	9.65	33.3	26.9	20.6	10.4	28.7	86.0	57.0	65.0
18-20	15518-20	1.05	119	76.0	9.65	38.1	26.9	20.6	10.4	35.1	86.0	57.0	65.0
22	15500-22	2.47	154	97.0	12.7	44.5	35.1	26.9	13.5	41.4	114	82.5	87.5
24-26	15524-26	2.38	154	97.0	12.7	54.0	35.1	26.9	13.5	46.0	114	82.5	87.5
28-30	15528-30	4.21	184	116	16.0	60.5	44.5	33.3	16.8	52.5	137	98.5	103
32-35	15532-35	4.45	184	116	16.0	67.0	49.3	38.9	19.8	58.5	137	98.5	103
