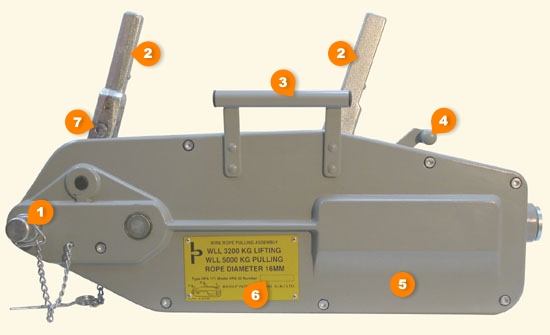

WIRE ROPE PULLING ASSEMBLY : VPA-171
1. Anchor Bolt
2. Reverse & Forward Levers -
Placed in tandem providing a slim design and assuring power transfer along the centre
3. Spare Shear Pins
Two spare shear pins located in the carrying handle.
4. Rope Clamp System
Easily disengaged with a lever allowing smooth installation of the wire rope.
5. High Strength Cast Aluminium Body
Light weight, simple to operate.Smooth contour design with large, flat base for increased stability in horizontal as well as vertical position.
6. Stamped Serial Number
For easy identification.
7. Built-In Shearing Pin
Preventing overload, it functions at approx 25% overload and the pins can be replaced without removing the load.
 |
 Galvanized steel wire rope mounted on a reel Every rope is operationally tested to 150% of the rated capacity and is issued with an individual test certificate.  Adjustable Handle For easy operation. |
 |
 |
VPA 008 |
VPA 016 |
 |
 |
VPA 032 |
VPA 054 |
| Model | VPA 008 | VPA 016 | VPA 032 | VPA 054 |
| Lifting Capacity (Rated Load Tonnes) |
0.8 | 1.6 | 3.2 | 5.4 |
| Pulling Capacity (Tonnes) | 1.25 | 2.5 | 5.0 | 8.0 |
| Lever Pull at Rated Load (N) | 284 | 412 | 441 | 745 |
| Forward Travel (mm) | 52 | 55 | 28 | 30 |
| Wire Rope Diameter (mm) | 8.3 | 11 | 16 | 20 |
| Net Weight (Body Only - Kg) | 6.4 | 12.4 | 23.3 | 56.5 |
| Net Weight (20 M Wire Rope- Kg) | 7.0 | 11.5 | 23.5 | 35.5 |
| Net Weight (Lever Handle - Kg) | 1.15 | 2.5 | 2.5 | 4.6 |
| Dimensions (Body - mm) B x A x S |
440 x 70 x 255 | 560 x 100 x 295 | 675 x 120 x 350 | 930 x 152 x 480 |
|
||
 |
