grade 80 chain specifications

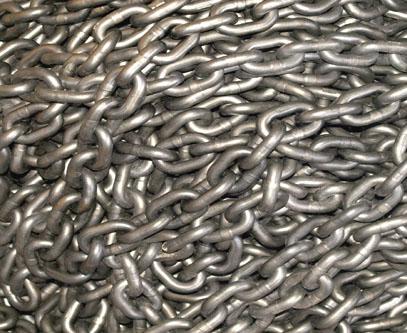

Grade 80 Lifting Chain

Natural Finish. Permanently embossed with manufacturer's marking and 8 (grade).
Item No. Working
Load Limit
tonnes*
Wire
Dia
mm
B
mm
A
mm
Weight
Kg
BC-116-06 1.12 6 18 7.8 0.8
BC-116-07 1.5 7 21 9.1 1.0
BC-116-08 2.0 8 24 10.4 1.4
BC-116-10 3.15 10 30 13.0 2.2
BC-116-13 5.3 13 39 16.9 3.7
BC-116-16 8.0 16 48 20.8 5.7
BC-116-20 12.5 20 60 26.0 8.9
BC-116-22 15.0 22 66 28.6 10.8
BC-116-26 21.2 26 78 33.8 15.1
BC-116-32 31.5 32 96 41.6 22.8
* Design factor 4:1 proof tested and certified

Grade 80 Chain Slings Safe Working Load Chart

CHAIN SIZE SINGLE LEG
TWO LEG THREE LEG FOUR LEG
0 to 90°
90 to 120° 0 to 90° 0 to 90° 90 to 120°
7mm 1.5 2.1 1.5 3.1 3.1 2.2
10mm 3.2 4.5 3.2 6.7 6.7 4.8
13mm 5.4 7.6 5.4 11.4 11.3 8.1
16mm 8 11.3 8 16.9 16.8 12
20mm 12.5 17.5 12.5 26.4 26.25 18.75
22mm 15.5 21.9 15.5 32.8 32.55 25.3
26mm 21.6 31 22 46 45.3 32.4
32mm 32 45 32 68 67.2 48

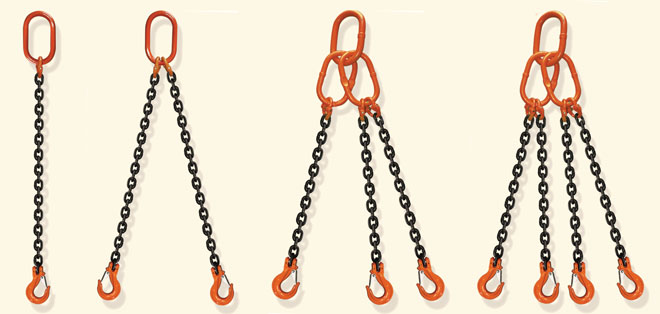

chain_slings
