ELECTRIC CHAIN HOIST - HEC-178

CHARACTERISTICS
  • High effcient energy-saving motor, asbestos free system.
  • Light weight, compact and solid body case.
  • Top and bottom hooks are fitted with safety latches as standard.
  • Drop forged steel suspention & load hooks are heat treated and fracture resistant.
  • In case of dangerous overloading or abuse,
    the hook does not fracture but will slowly yield.
  • Solid chain bucket, specially strengthened plastic bucket.
  • Super strong surface hardened chain.
  • Limit switch devices fitted at both top & bottom ends, switch off power automatically to prevent load chain from running out.
  • Phase error relay, a specially designed current-post, prevents motor from running at incorrect wire connection.


    chain hoists

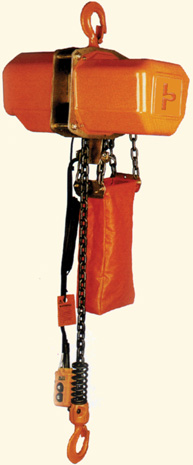

chain hoist

Model

ECH-005
ECH-010
ECH-020
Capacity
 t
0.5
1.0
2.0
Standard lift
 m
3
3
3
Proof load kN
6.3
12.5
25
Motor Power
kW
0.8
1.1
1.1
No. of falls of load chain

1
1
2
Load chain diamter mm
7.1
7.1
7.1
Lift speed
m/min
5.8
4.3
2.15

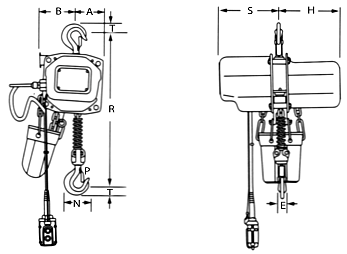

Dimensions (mm)
 B
150
150
173
A
112
112
90
S
250
250
250
H
245
245
245
P
27
30
38
I
45
50
65
N
85
105
136
T
17
26
36
E
14
15
22
R
550
590
770
Net weight
 Kg
44
46
60
