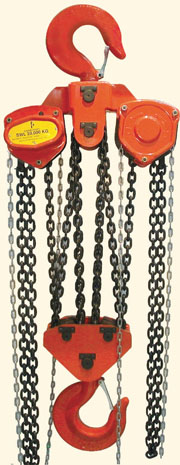

CHAIN HOIST - HCB-174
CHARACTERISTICS
Capacity ranges from 0.5t to 20t.
Automatic double pawl braking system.
Lightweight robust construction.
Fully forged hooks are fitted with safety latches as standard.
Zinc plated hand chain as standard.
Sealed bearing.
Unique hand wheel cover for guiding hand chain at any angle.
Each hoist is proof tested at 1.5 times WLL up to 10t, 1.25 times WLL up to 20t.
|
Model |
|
B1740.5 |
B17401 |
B1741.5 |
B17402 |
B17403 |
B17405 |
B17410 |
B17420 |
Capacity |
t |
0.5 |
1 |
1.5 |
2 |
2 |
5 |
10 |
20 |
Standard lift |
m |
2.5 |
2.5 |
2.5 |
3 |
3 |
3 |
3 |
3 |
Proof load |
kN |
0.15 |
1.5 |
2.25 |
3.0 |
4.5 |
7.5 |
7.5 |
30.0 |
No. of falls of load chain |
|
1 |
1 |
1 |
1 |
2 |
2 |
4 |
8 |
Load chain |
mm |
6x18 |
6x18 |
8x24 |
8x24 |
8x24 |
10x30 |
10x30 |
10x30 |

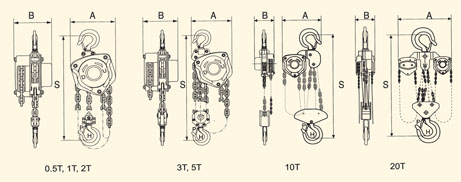

Dimension(mm) |
B |
131 |
140 |
161 |
161 |
161 |
186 |
207 |
215 |
| A |
127 |
158 |
174 |
187 |
199 |
253 |
398 |
650 |
| S |
270 |
317 |
399 |
414 |
465 |
636 |
798 |
890 |
| H |
35 |
35.5 |
45 |
42.5 |
50 |
64 |
85 |
110 |
| P |
30 |
28 |
36 |
33.5 |
40 |
50 |
84 |
85 |
Net weight |
Kg |
10 |
12 |
19 |
20 |
27 |
45.5 |
83 |
193 |
Extra weight per metre
of extra lift |
Kg |
1.7 |
1.7 |
2.3 |
2.3 |
3.7 |
5.8 |
9.7 |
19.4 |
|
Hoists with other heights of lift also available
|
|
|

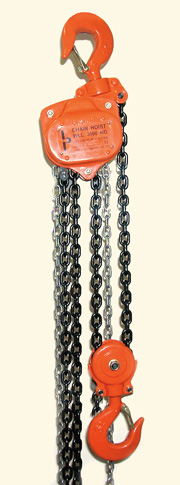

CHAIN HOIST - VCE-177
CHARACTERISTICS
Capacity ranges from 0.5t to 20t.
Automatic double pawl braking system.
Double cover protection.
Lightweight robust construction.
Low effort to lift maximum load.
Fully forged hooks are fitted with safety latches as standard.
Zinc plated hand chain as standard.
Unique hand wheel cover for guiding hand chain at any angle.
Each hoist is proof tested at 1.5 times WLL up to 10t, 1.25 times WLL up to 20t.
|
| Model |
|
B1770.5 |
B17701 |
B1771.5 |
B17702V |
B17702 |
B17703 |
B17705 |
B17710 |
B17720 |
| Capacity |
t |
0.5 |
1 |
1.5 |
2 |
2 |
3 |
5 |
10 |
20 |
| No.of falls |
|
1 |
1 |
1 |
1 |
1 |
2 |
2 |
4 |
8 |
| Load chain |
mm |
5x15 |
6.3x19 |
7.1x21 |
7.1x21 |
8x24 |
7.1x21 |
9x27(2) |
9x27(4) |
9x27(8) |
| Load chain grade |
|
80 |
80 |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
| Pull to lift rated load |
kN |
25 |
33 |
34 |
45 |
34 |
35 |
39 |
41 |
41x2 |
| Test load |
t |
0.75 |
1.5 |
2.25 |
3.0 |
3.0 |
45 |
7.5 |
15.0 |
30.0 |
| Hand chain |
mm |
4.8x22.2 |
4.8x22.2 |
4.8x22.2 |
4.8x22.2 |
4.8x22.2 |
4.8x22.2 |
5.5x23.6 |
5.5x23.6 |
5.5x23.6(2) |
| Std. lift |
m |
3.0 |
3.0 |
3.0 |
3.0 |
3.0 |
3.0 |
3.0 |
5.0 |
5.0 |
| Net wt. |
kg |
9.0 |
12.2 |
14.5 |
15.5 |
21.0 |
22.0 |
40.0 |
89.4 |
214.7 |
| Dimensions (mm) |
B |
127 |
147 |
147 |
147 |
179 |
147 |
179 |
179 |
207 |
| A |
144 |
157 |
174 |
174 |
204 |
206 |
263 |
367 |
873 |
| S |
285 |
315 |
340 |
355 |
380 |
475 |
600 |
740 |
870 |
| H |
37 |
45 |
47 |
52 |
52 |
62 |
78 |
64 |
92 |
| Gross wt. |
kg |
9.4 |
12.7 |
15.0 |
16.0 |
22.2 |
22.7 |
41.5 |
96.9 |
244.7 |
| Extra wt. per m |
kg |
1.416 |
1.732 |
1.972 |
1.972 |
2.58 |
3.072 |
4.71 |
8.23 |
16.46 |
Hoists with other heights of lift also available
|
