FISH PLATES BFP-173

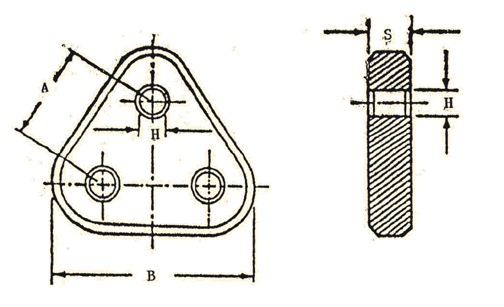

fish plate

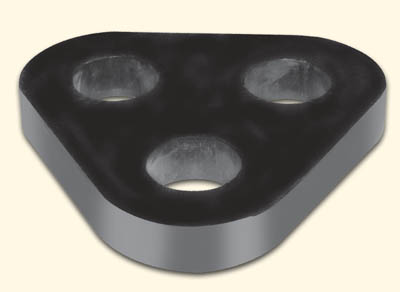

fish plate


Chain Size B A S H Proof load Break load Weight
mm mm mm mm mm tonnes tonnes kg
38 320 168 50 76 81.2 106 13
48 360 184 60 88 127 181 25
58 430 225 80 102 190 287 50
70 506 266 90 120 270 404 81
76 550 290 90 130 313 472 96
83 600 316 100 142 356 549 127
95 685 361 120 162 508 794 199
102 736 388 120 174 594 910 230

Average -35% of Breaking Load = Proof Load
