LEVER HOISTS





CHARACTERISTICS
  • The Bash-P lever hoist is a universal, manual hoist for lifting, tensioning and lashing in any direction.
  • The ratchet lever hoist features compact design and robust, deep drawn, stamped steel construction.
  • High quality materials ensure light weight without infringing reliability.
  • Light weight, minimal lever force at full load.
  • Asbestos free brake, holding load at any height.
  • Top & Bottom hooks are fitted with safety latches as standard.
  • The load chain can be pulled freely and easily through the hoist in both directions to attach the load or to tension
    the chain. For safety, the free chain cannot be adjusted whilst under load.
  • Short hand lever with rubber grip.
  • Hand lever operates with little effort due to optimal gear ratio.
  • Drop forged steel suspension & load hooks are heat treated and fracture resistant in the case of overloading
    or abuse.
  • The hoist is fitted with high grade alloy load chain.

lever hoist

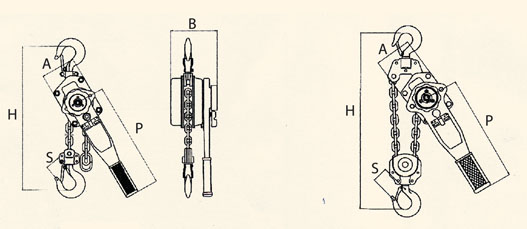

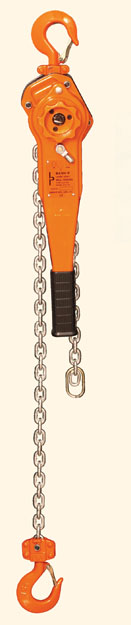

LEVER HOIST - VLH-194

lever hoist

Model   VLH 075 VLH 100 VLH 150 VLH 300 VLH 600
Capacity t 0.75 1 1.5 3 6
Standard lift m 1.5 1.5 1.5 1.5 1.5
Test load kN 11.3 15 22.5 45 90
Head room "H" mm 325 325 380 480 620
Effort on lever to Lift Full Load kg 14 18 22 32 34
No. of load chain falls   1 1 1 1 2
Diameter of load chain mm 6 6 8 10 10
Length of lever handle "P" mm 280 280 410 410 410
Dimensions (mm) B 148 148 172 200 200
A 90 90 98 115 115
S 38 45 49 67 78
Net weight kg 7 7 11 21 31
Extra weight per meter of extra lift kg 0.8 0.8 1.4 2.2 4.4


lever hoist

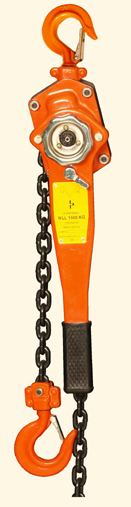

LEVER HOIST - HLH-181

lever hoist

Model   HLH 0.75 HLH 150 HLH 300 HLH 600 HLH 900
Capacity t 0.75 1.5 3 6 9
Standard lift m 1.5 1.5 1.5 1.5 1.5
Proof load kN 11.0 22.5 37.5 75 112.5
No. of falls of load chain   1 1 1 2 3
Dimensions (mm) B 148 172 200 200 200
A 90 98 115 115 115
S 136 160 180 235 320
H 37 45 50 64 85
P 325 380 480 620 700
I 280 410 410 410 410
N 30 36 40 50 58
Net weight kg 7 11 21 31 46
Extra weight per meter of extra lift kg 0.8 1.4 2.2 4.4 6.6




lever hoist

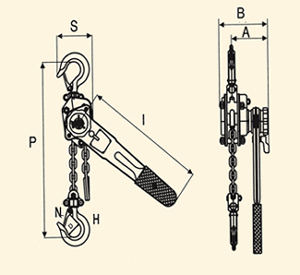

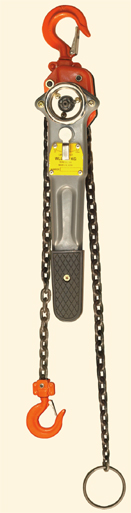

LEVER HOIST - HLS-183

lever hoist

Model   HLH 025 HLH 050
Capacity t 0.25 0.5
Standard lift m 1 1.5
Proof load kN 3.2 6.3
No. of falls of load chain   1 1
Load chain mm 4x12 5x15
Dimensions (mm) B 92 105
A 72 78
S 85 80
H 30 35
P 230 260
I 160 300
N 25 30
Net weight kg 1.8 4
Extra weight per meter of extra lift kg 0.41 0.52



Hoists with other heights of lift also available
