GENERAL PURPOSE EUROWIRE

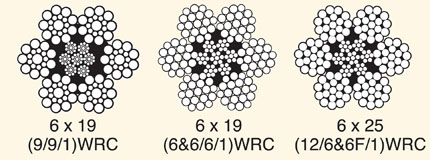

6 x 19 Class Steel Core

Size Nominal Diameter	Steel Core
	Approximate Mass	1770 Tensile Grade		1960 Tensile Grade
		Minimum Breaking Load	Minimum Breaking Load	Minimum Breaking Load	Minimum Breaking Load
mm	kg/100m	tonnes(t)	kN	tonnes(t)	kN
6	14.4	2.32	22.7	2.56	25.1
7	19.6	3.15	30.9	3.49	34.2
8	25.6	4.11	40.3	4.56	44.7
9	32.4	5.20	51.0	5.76	56.5
10	40.0	6.24	63.0	7.12	69.8
11	48.4	7.77	76.2	8.61	84.4
12	57.6	9.25	90.7	10.20	100.0
13	67.6	10.80	106.0	12.00	118.0
14	78.4	12.60	124.0	14.00	137.0
16	102.0	16.40	161.0	18.30	179.0
18	130.0	20.80	204.0	23.10	226.0
19	144.0	23.10	227.0	25.70	252.0
20	160.0	25.70	252.0	28.50	279.0
21	176.0	28.40	278.0	31.40	308.0
22	194.0	31.10	305.0	34.50	338.0
24	230.0	37.00	363.0	41.00	402.0
26	270.0	43.40	426.0	48.10	472.0
28	314.0	50.40	494.0	55.80	547.0
29	336.0	54.10	530.0	59.90	587.0
32	410.0	65.70	645.0	72.90	715.0
35	490.0	78.70	772.0	87.20	855.0
36	518.0	83.30	817.0	92.20	904.0
38	578.0	92.80	910.0	103.00	1010.0
40	640.0	103.00	1010.0	114.00	1120.0
44	774.0	124.00	1220.0	138.00	1350.0
48	922.0	148.00	1450.0	164.00	1610.0
52	1080.0	174.00	1700.0	193.00	1890.0
54	1170.0	187.00	1837.0	207.00	2030.0
56	1250.0	210.00	1980.0	223.00	2190.0
60	1440.0	231.00	2270.0	256.00	2510.0

These ropes are in accordance with BS 302:1987
