GENERAL PURPOSE EUROWIRE

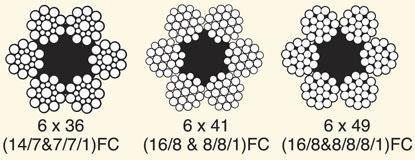

6 x 36 Class Fibre Core

Size Nominal Diameter	Fibre Core
	Approximate Mass	1770 Tensile Grade		1960 Tensile Grade
		Minimum Breaking Load	Minimum Breaking Load	Minimum Breaking Load	Minimum Breaking Load
mm	kg/100m	tonnes(t)	kN	tonnes(t)	kN
8	23.5	3.81	37.4	4.22	41.4
9	29.7	4.82	47.3	5.34	52.4
10	36.7	5.95	58.4	6.6	64.7
11	44.4	7.21	70.7	7.99	78.3
12	52.8	8.57	84.1	9.5	93.1
13	62	10.1	98.7	11.1	109
14	71.9	11.6	114	13	127
16	94	15.3	150	16.9	166
18	119	19.3	189	21.4	210
19	132	21.5	211	23.8	233
20	147	23.9	234	26.4	259
22	178	28.8	283	31.9	313
24	211	34.3	336	38	373
26	248	40.3	395	44.6	437
28	288	46.7	458	51.7	507
32	376	61	598	67.5	662
35	450	73	716	80.8	792
36	476	77.2	757	85.5	838
38	530	85.9	843	95.3	934
40	587	95.3	935	106	1040
44	711	115	1130	128	1250
48	846	138	1350	152	1490
52	992	161	1580	179	1750
54	1070	174	1703	193	1890
56	1150	187	1830	227	2030
60	1320	214	2100	238	2330

These ropes are in accordance with BS302:1987
