GENERAL PURPOSE EUROWIRE

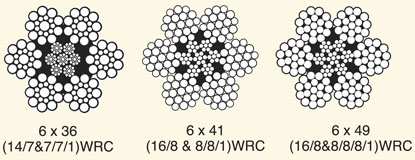

6 x 36 Class Steel Core

Size Nominal Diameter	Steel Core
	Approximate Mass	1770 Tensile Grade		1960 Tensile Grade
		Minimum Breaking Load	Minimum Breaking Load	Minimum Breaking Load	Minimum Breaking Load
mm	kg/100m	tonnes(t)	kN	tonnes(t)	kN
8	26.2	4.11	40.3	4.56	44.7
9	33.1	5.20	51.0	5.76	56.5
10	40.9	6.42	63.0	7.12	69.8
11	49.5	7.77	76.2	8.61	84.4
12	58.9	9.25	90.7	10.20	100.0
13	69.1	10.80	106.0	12.00	118.0
14	80.2	12.60	124.0	14.00	137.0
16	105.0	16.40	161.0	18.30	179.0
18	133.0	20.80	204.0	23.10	226.0
19	148.0	23.10	227.0	25.70	252.0
20	164.0	25.70	252.0	28.50	279.0
22	198.0	31.10	305.0	34.50	338.0
24	236.0	37.00	363.0	41.00	402.0
26	276.0	43.40	425.0	48.10	472.0
28	321.0	50.40	494.0	55.80	547.0
32	419.0	65.70	645.0	72.90	715.0
35	501.0	78.70	772.0	87.20	855.0
36	530.0	83.30	817.0	92.20	904.0
38	591.0	92.80	910.0	103.00	1010.0
40	654.0	103.00	1010.0	114.00	1120.0
44	792.0	124.00	1220.0	138.00	1350.0
48	942.0	148.00	1450.0	164.00	1610.0
52	1110.0	174.00	1700.0	193.00	1890.0
54	1190.0	187.00	1837.0	208.00	2040.0
56	1280.0	201.00	1980.0	223.00	2190.0
60	1470.0	231.00	2270.0	256.00	2510.0

These ropes are in accordance with BS 302:1987
