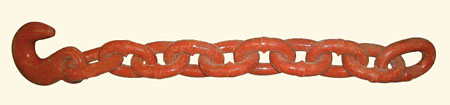

WINCHLINE TAIL CHAINS - CWTC166
 |
||
Hooks are forged - Quenched and Tempered. |
| WINCHLINE TAIL CHAIN - CWTC-166 SPECIFICATIONS | |||||
Item No. |
Wire Rope Diameter (mm) |
Working Load Limit (Kg) |
Length (mm) | No. of Links |
Weight Each (Kg) |
| CWTC-16601 | 8-10 | 2450 | 457 | 11 | 1.36 |
| CWTC-16602 | 13-16 | 5900 | 457 | 7 | 2.81 |
| CWTC-16603 | 19-22 | 15510 | 610 | 8 | 8.25 |
| CWTC-16604 | 25-29 | 21640 | 457 | 5 | 9.60 |
| CWTC-16605 | 25-29 | 21640 | 610 | 7 | 10.6 |
Recommended for IPS or XIP (EIP), RRL, FC, or IWRC wire rope.
Ultimate load is 3.5 times the Working Load Limit
|
||
 |
